Description

Elite Piping Manufacture Co., Ltd
Elite Piping Manufacture Co., Ltd

Stainless steel is a versatile material comprised of a steel alloy and a small percentage of chromium — the addition of chromium adds to the material’s corrosion resistance, a trait that earned stainless steel its name. Because stainless steel is also low-maintenance, oxidation resistant, and doesn’t affect other metals it comes in contact with, it is frequently used in a large array of applications, especially in piping and tubing manufacturing.

Material stainless steel grades

ASTM A312
ASTM A789 & A790

ASTM A789 & A790: American Society for Testing and Materials
Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
Application: Refineries; Nuclear Plant; Aerospace Industry; Chemical Fertilizer; Petrochemicals’ Oli & Gas and etc.

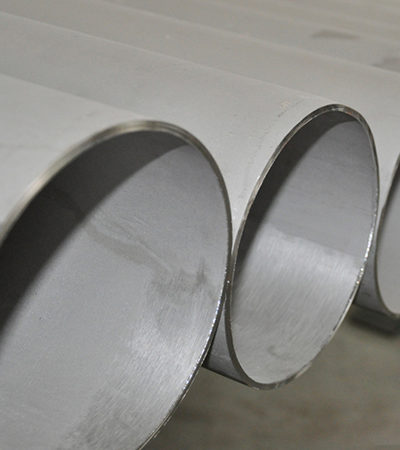

ASTM A789 covers duplex stainless steel (UNS S32205, S31803) tubing for general corrosion-resisting and low or high-temperature services.

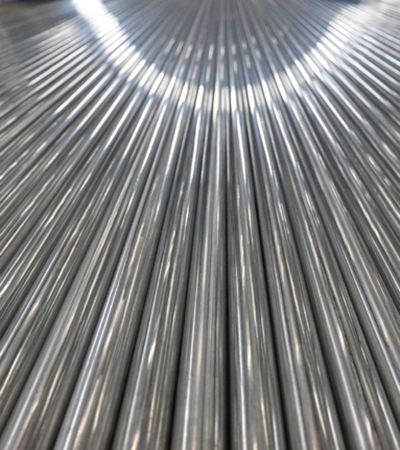

ASTM A790 covers seamless and welded ferritic/austenitic stainless steel (UNS S31803, S32205, S32750, S32760) tubing for general corrosion-resisting and low or high-temperature services.

A789 Chemical Composition

ASTM A789 & A790

A790 Chemical Composition

ASTM A789 & A790

A789 Mechanical Properties

A789 Mechanical Properties1

A790 Mechanical Properties

ASTM A789 & A790

Rich production technology, advanced equipment, high automation degree and high production precision, complete molding. As the designated supplier of major energy enterprise groups under the jurisdiction of SASAC, the company has won a number of national and provincial reputations.

Additional information

Material

Stainless Steel

Application

Widely used in Petrochemical, Coal Chemical, Refining, Oil and Gas Transmission, Marine Environment, Power, Heating and Other projects

Size Range

Seamless Series: OD: 6 – 762 mm; Thickness: 0.5 – 50 mm
Welded Series: OD: 6 – 2600 mm; Thickness: 0.3 – 30 mm
Sanitary Tubing: 1/8″ – 6″

Specifications and Steel Grade

UNS S31803, S32205, S32750, S32760, S31500
